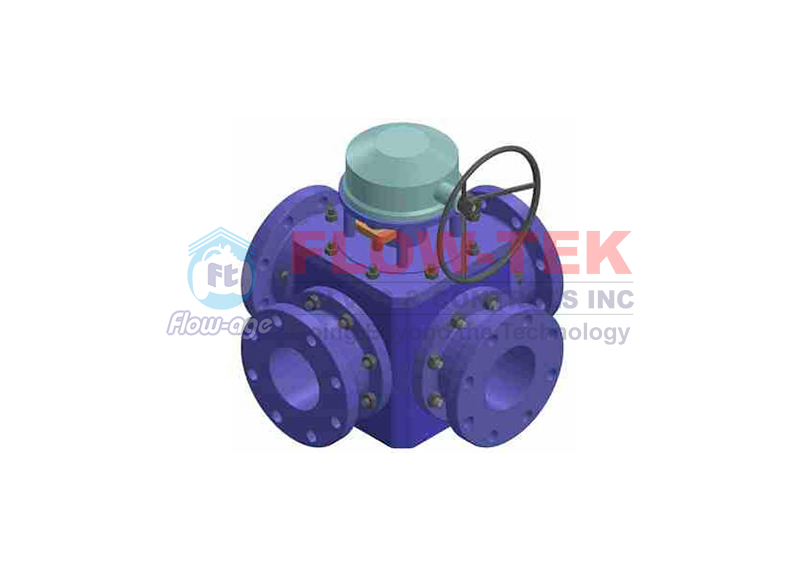

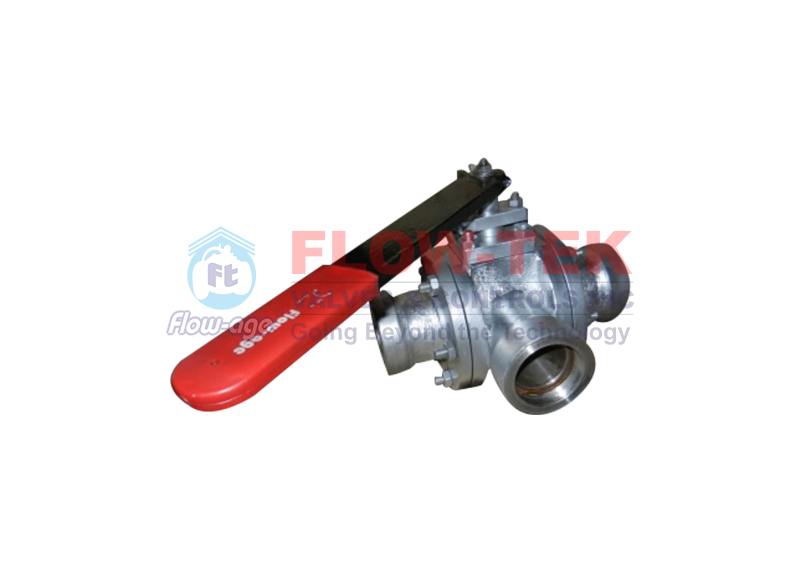

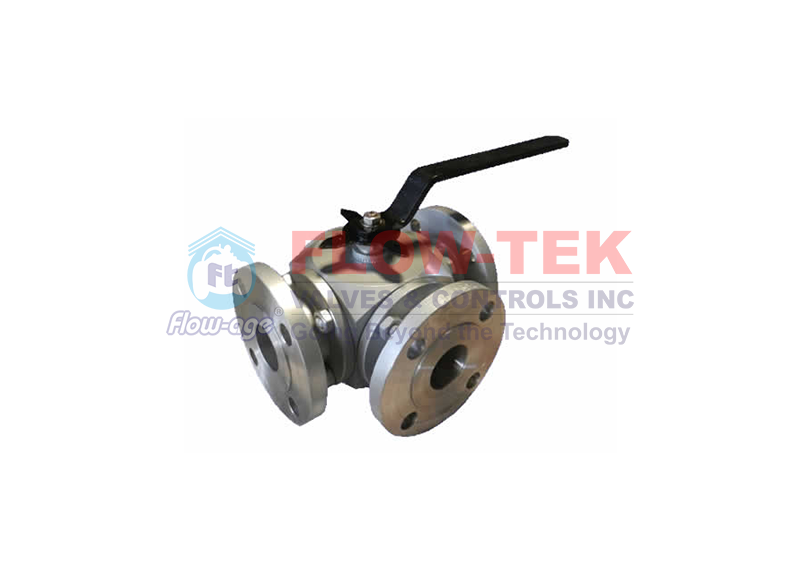

Multi Port Ball Valve

Flow-Tek Valves & Controls manufactures high performance Quarter-Turn Ball Valve, widely use in the Process Industries. These Valves are basically Soft Seated, gives 100 % Leak Proof tight shut off at Temperature ranging form - 20°c to 200°c.

The Valves are provided with Self Lubricated & Replaceable PTFE Moulded Seat & Mirror finished polished Stainless Steel Ball, Reduces Friction which gives very smooth operation, So the valves becomes free from maintenance gives the long life.

Request A Quote Download Catalogue
  • Description

Features

Features Specification Standard
Size Range: - 1/2 To 12 15mm To 300mm Design BS 5351 / API 6D
Available Class: - In Alloy Class 150, 300, 600, 900 In Forge Class 800 Face To Face ANSI B 16.10
Available Materials: - CI / CS / SS 304 / SS 316 / SS 304L / SS 316L / Hast Alloy / Monel and other all Special Metals End To End Flanged / Screwed (BSP / NPT) F / Socket Weld / RTJ
Available Design: - Single / Two / Three Piece Three / Four Way End Flange ANSI B 16.5 / ANSI B 16.47 / DIN / BS / IS / JIS
Available Port: - Trunion, Floating Ball, Full & Reduced Bore Butt Weld End ANSI B 16.25
Anti-Static Device, Blow-Out Proof Steam Test BS 6755 / API 598
Available Operations: - Manual Hand Lever / Gear / Electrical (Motorised) / Pneumatic Fire Safe Test API 607 / API 6FA
Approval: - Fire Safe

Applications

  • Process Chemicals
  • Pharmaceuticals
  • Refineries and Petrochemicals Plants
  • Paper and Sugar Plants
  • Drilling Rig
